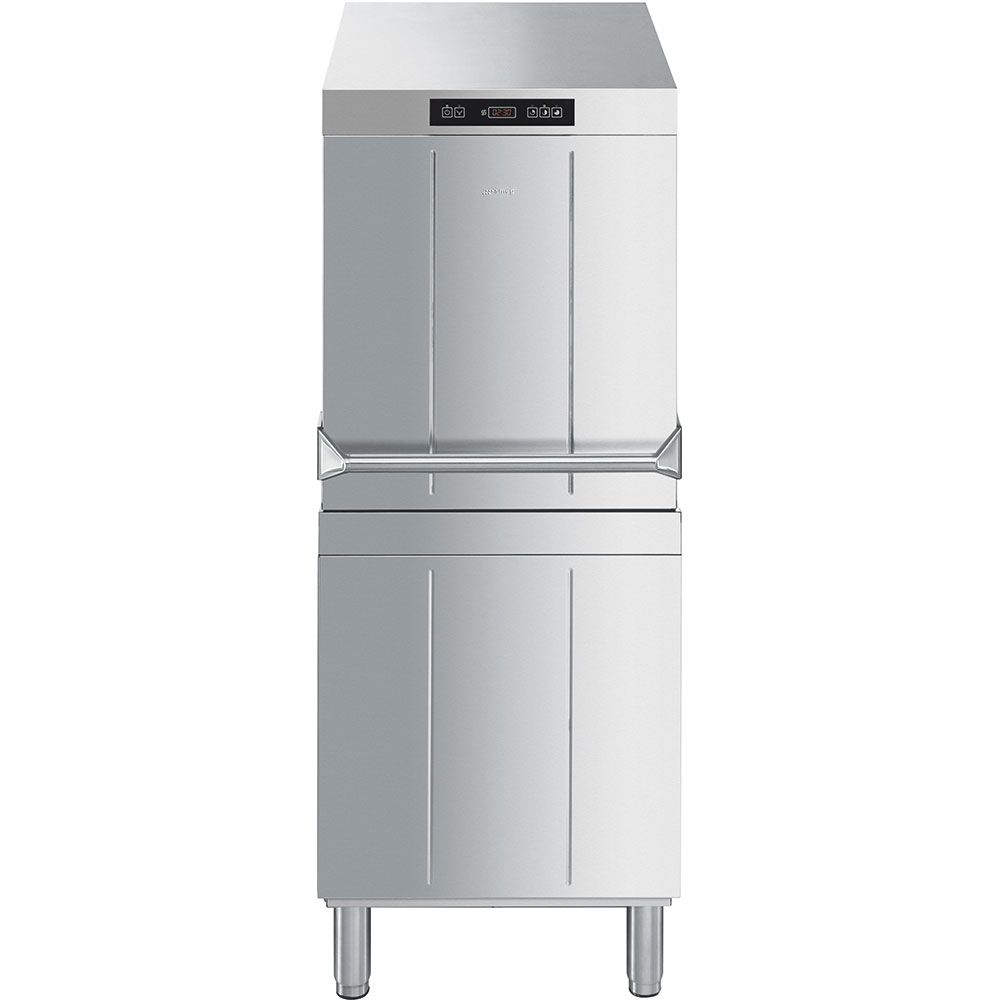

Hood Type Dishwasher – HTY503D

SKU: HTY503D Categories: ,

Description

Hood type dishwasher, double skin, detergent dispenser, 500 mm basket

  • Product FamilyDishwashers
  • TypeHood type
  • LineEASYLINE

FULL SHEET

 TECHNICAL DATA

  • Structure: AISI 304 stainless steel
  • Control type: electronic
  • Basket dimensions: 500×500 mm
  • Baskets hour: 60/30/20
  • No. of programs: 3
  • Rinse aid dispenser: Peristaltic pump with electronic adjustment
  • Detergent dispenser: Peristaltic pump with electronic adjustment
  • Operable load height: 440 mm
  • Washing tank capacity: 17 lt.
  • Boiler capacity: 8 lt.
  • Boiler heating element: 9 kW
  • Tank heating element: 2.2 kW
  • Wash pump power: 0.7 kW
  • Power supply / Total power installed: 400V 3N 50Hz / 9.7 kW
  • Outside dimensions (WxDxH): 620x736x1530/2007mm
  • Weight (net/gross): 82/89 Kg
  • Rinse system: Water pressure
  • Wash system: Wash pump with ‘Soft Start’ system
  • Drain system: Drain pump and triple stage dynamic filter
  • Single-wall hood
  • Automatic tank washing on drain down
  • no. 2 washing impellers in AISI 304 stainless steel
  • no. 2 rinse impellers in AISI 304 stainless steel
  • Insulated boiler
  • Double-wall tank with rounded corners
  • Supply non-return device
  • Thermostop for controlling the rinse water temperature
  • Self-diagnosis system with fault warning
  • PB50D01 – Basket for dishes, max 18 piecesØ 250 mm
  • PB50G01 – universal basket with flat bottom
  • PHOOS01 – Single cutlery basket
  • PHOOS02 – Cutlery basket with 6 compartments
  • WB50D01 – Wire basket for 18 dishesØ 250 mm ans self-service trays
  • WB50G01 – Wide-mesh wire basket with flat bottom
  • WB50G02 – Wire basket with inclined bottom for stem glasses Ø max 90 mm
  • WB50G03 – Wire basket with inclined bottom for stem glasses Ø max 72 mm
  • WB50G04 – Wire basket with inclined bottom for stem glasses Ø max 120 mm
  • WB50T02
  • WH00S01 – Wire insert for saucers
  • WH00C01 – Insert for cups with inclined bottom
  • PB60D01 – Basket for dishes, max 22 piecesØ 250 mm
  • PB60G01 – universal basket with flat bottom
  • PB60T02 – Basket for trays GN1/1
  • WB60G01 – Wide-mesh wire basket with flat bottom
  • WB60D01 – Wire basket for 24 dishesØ 260 mm
  • WB60D02 – Wire basket for 16 dishesØ 320 mm
  • WB60T03
  • KAP06 – Pressure increase pump kit for Glasswashers, Front-loading Dishwashers and Hood of EASYLINE range
  • HOOD TABLES
  • DETERGENT AND RINSE AIDS
  • PB50D01 – Basket for dishes, max 18 piecesØ 250 mm
  • PB50G01 – universal basket with flat bottom
  • 1 PH00S02

Brand

Smeg
