TECHNICAL INFORMATION & FEATURES
TABLE TOP MODELS
• The grilling top shall be manufactured from cast iron
• The cast iron grids shall be reversible - Ribbed / fish
• The body shall be manufactured from 50 x 25 x 1.6 mm mild steel square
tubing
• Stainless steel front plate
• Stainless steel burners
• Brass jets
• Galvanised steel drip tray
• The mild steel components shall be finished in Hammertone light blue
• Plastic adjustable feet
• All gas fittings shall be stainless steel (No galvanised steel)

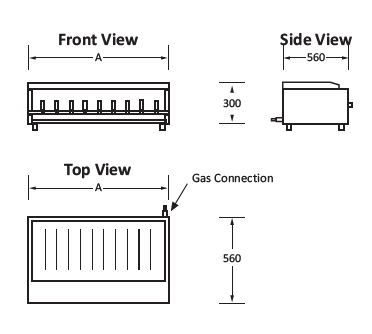

• 3 Burner: A = 610 mm, Pack size 610 x 580 x 360 mm, Weight 28 Kg
• 4 Burner: A = 720 mm, Pack size 720 x 580 x 360 mm, Weight 32 Kg
• 5 Burner: A = 830 mm, Pack size 830 x 580 x 360 mm, Weight 38 Kg
• 6 Burner: A = 940 mm, Pack size 940 x 580 x 360 mm, Weight 44 Kg
• 7 Burner: A = 750 mm, Pack size 750 x 580 x 360 mm, Weight 49 Kg

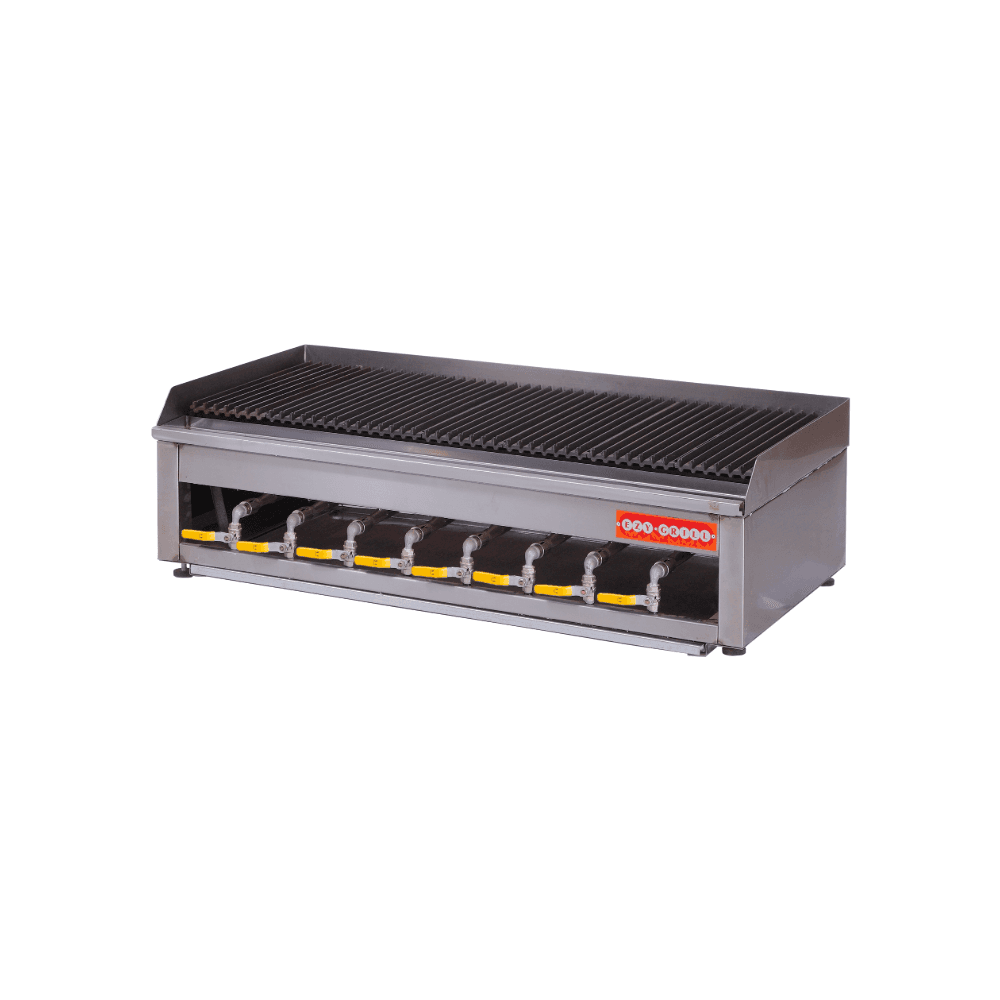

• 8 Burner: A = 1100 mm, Pack size 1100 x 580 x 360 mm, Weight 54 Kg
• 9 Burner: A = 900 mm, Pack size 900 x 580 x 360 mm, Weight 58 Kg
• 10 Burner: A = 1250 mm, Pack size 1250 x 580 x 360 mm, Weight 61 Kg
