TARGET
Solutions:Hotels; Restaurants/Pubs; QSR
TYPE

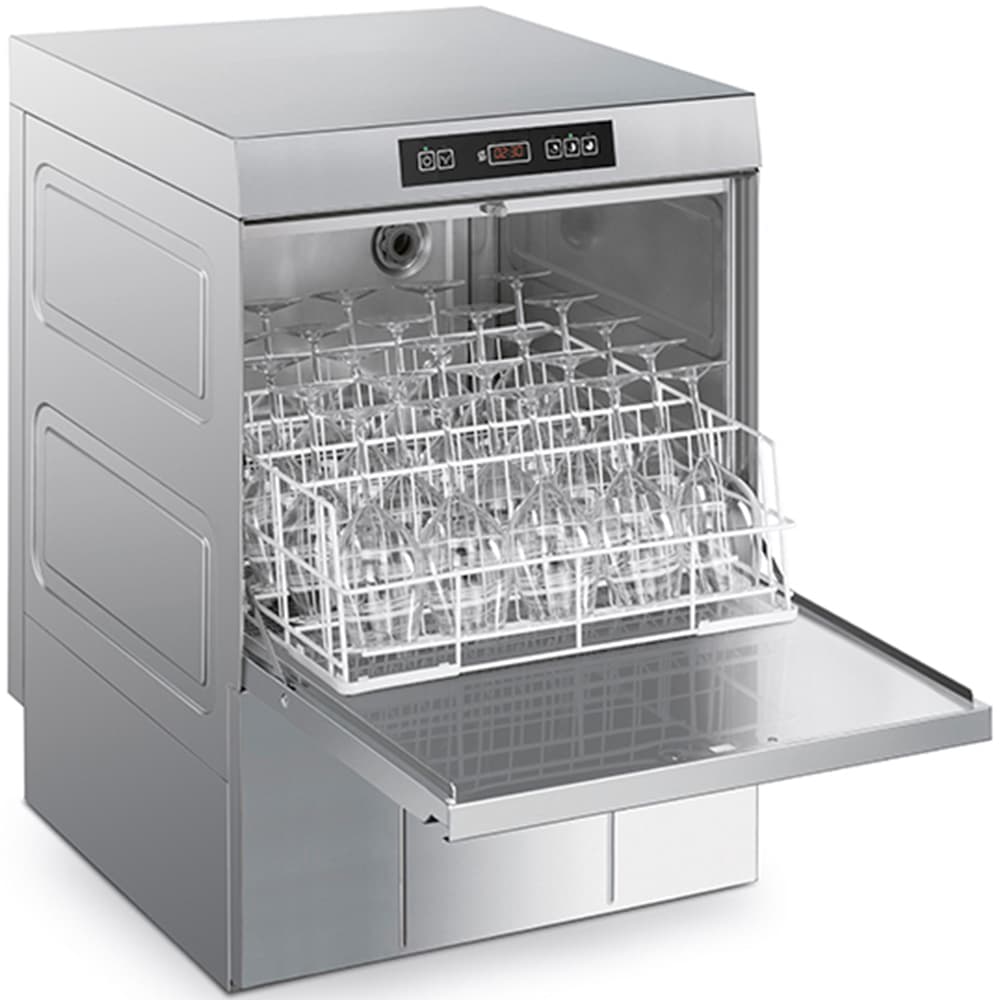

Family:Professional dishwasher
Subfamily:Undercounter Dishwasher
Basket dimensions:500x500 mm
Panel:Ecoline
Power connection:400 V 3N~ / 12 A / 5,7 kW / 50 Hz
Usable load height:340 mm
Depth with open door:1000 mm
Product dimensions WxDxH:578x600x814 mm
AESTHETICS
Series:Ecoline
Led color:Red
FUNCTIONS
Functionality:GN 1/1 trays washing, 4-stages filter, HTR, Door clearance 340mm
PROGRAMS
Programs:3 automatic programs; Self-cleaning programs
Program options:Extra rinse; Clean water cycle
Program specifications:Boiler 85°C/Tank 60°C - 1'30"; Boiler 85°C/Tank 60°C - 2'30"; Boiler 85°C/Tank 60°C - 4'
Drain and self cleaning cycle:Yes
Maximum basket/hour:40
Maximum dishes/hour:720
TECHNICAL FEATURES
Tank heating element:2000 W
Boiler heating element:4960 W
Washing pump:680 W
Default connection:5650 W
Water cycle consumption:3,2 l
Inlet pressure:100-600 kPa
Warm water connection:8°C
Max temperature inlet water:60°C
Max water hardness:12°f - 7°dH
ELECTRICAL CONNECTION
Optional electrical connection:230 V 3~ / 16 A / 5,7 kW / 50 Hz; 230 V~ / 12 A / 2,7 kW / 50 Hz; 230 V~ / 14 A / 3,2 kW / 50 Hz; 230 V~ / 18 A / 4,0 kW / 50 Hz
INTERFACE
Display:4 digit
Number of buttons:5
On/Off button:Yes
Manual diagnostic:Yes
CONSTRUCTION
Tank:With printed base
Construction:Single wall
Tank material:Stainless steel AISI 304
Tank filter:Plastic
Door:Double wall
Back panel:Galvanized
Washing spray arm:2 in stainless steel
Rinse spray arm:Plastic
Door gasket:Only up
Rack guides:Embossed
Tank capacity:16 l
Boiler capacity:6 l
Noise:Lpa 55,5 dBA
Protection class:IPX4
Adjustable feet:Yes
Drain max. height:600 mm
LOGISTIC INFORMATION
Width packed product:660 mm
Depth packed product:700 mm
Height packed product:990 mm
Packed product dimensions:990X660X700
Gross weight (kg):64.000
Packaging type:Carton on pallet
Paper packaging:3.031 kg
Polystyrene packaging:0.667 kg
Wood packaging:5.000 kg
Plastic packaging:0.100 kg
EQUIPMENTS
Drain pump:Yes
Peristaltic detergent doser:Electronic control
Peristaltic rinse-aid doser:Electronic control
Deafult chemicals dosing unit of measure:gr/lt
Detergent load:1,5 l/h
Rinse load:0,4 l/h
Automatic start:Yes, default OFF
Soft Start system:Yes
Stand-by system:Yes
Thermostop system:Yes
Cycle counter:Yes
Filter:4-stages filter system
Rinse pump H.T.R. system:Yes
Break tank:Yes
Partial renewal of water in the tank and built-in drain pump:Yes
Trays washing option:GN1/1 530X32 5mm
Detergent (red) hose lenght:2,2m
Rinse aid (blue) hose lenght:2,2m
