TARGET
Solutions:Coffee shops/Wine bars; Hotels; Restaurants/Pubs; Food retail; Catering and Institutions; QSR
TYPE

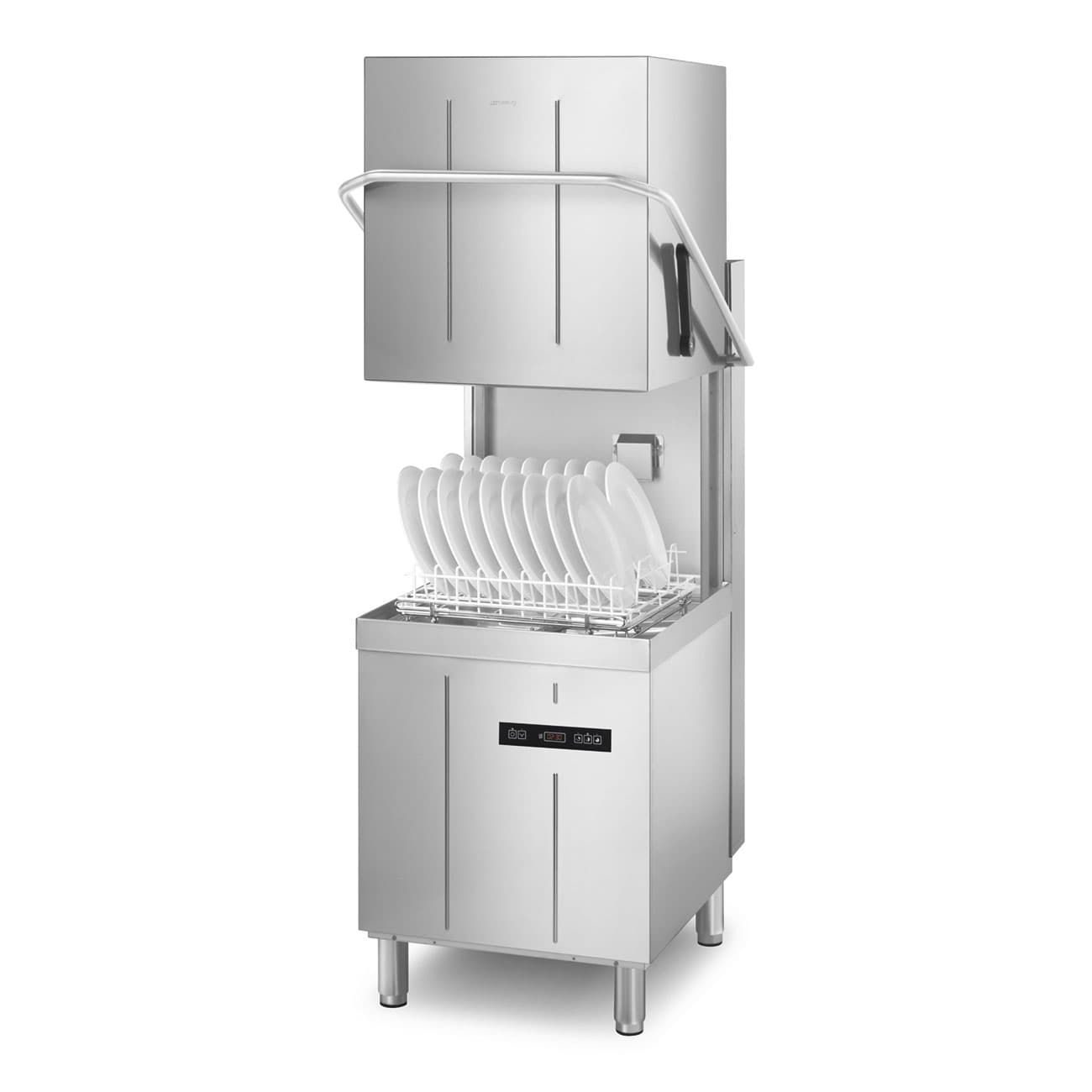

Family:Professional dishwasher
Subfamily:Hoodtype dishwasher
Basket dimensions:500x500 mm
Panel:Ecoline
Power connection:400 V 3N~ / 16 A / 9,7 kW / 50 Hz
Dual heating:Yes
Usable load height:470 mm
Maximum height with open hood:2055 mm
Product dimensions WxDxH:634x750x1440 mm
AESTHETICS
Series:Ecoline
Led color:Red
FUNCTIONS
Functionality:GN 1/1 trays washing, 5-stage filter, Door clearance 470mm
PROGRAMS
Programs:3 automatic programs; Self-cleaning programs
Program options:Extra rinse; Clean water cycle
Program specifications:Boiler 85°C/Tank 60°C - 1'30"; Boiler 85°C/Tank 60°C - 2'30"; Boiler 85°C/Tank 60°C - 4'
Drain and self cleaning cycle:Yes
Maximum basket/hour:40
Maximum dishes/hour:720
TECHNICAL FEATURES
Tank heating element:2200 W
Boiler heating element:9000 W
Washing pump:700 W
Default connection:9700 W
Water cycle consumption:3,2 l
Inlet pressure:250-1000 kPa
Warm water connection:8°C
Max temperature inlet water:60°C
Max water hardness:12°f - 7°dH
ELECTRICAL CONNECTION
Optional electrical connection:230 V 3~ / 28 A / 9,7 kW / 50 Hz; 230 V~ / 16 A / 3,7 kW / 50 Hz (NC); 230 V~ / 30 A / 6,7 kW / 50 Hz
INTERFACE
Display:4 digit
Number of buttons:5
On/Off button:Yes
Cycle progress alert:Yes
End-cycle alert:Yes
Manual diagnostic:Yes
CONSTRUCTION
Tank:Deep drawn
Construction:Partial double wall
Tank material:Stainless steel AISI 304
Tank filter:Stainless steel
Back panel:Prepainted
Washing spray arm:2 in stainless steel
Rinse spray arm:2 in stainless steel
Hood construction:Single wall
Tank capacity:14 l
Boiler capacity:8 l
Protection class:IPX4
Adjustable feet:Yes
Drain max. height:1000 mm
LOGISTIC INFORMATION
Width packed product:700 mm
Depth packed product:900 mm
Height packed product:1700 mm
Packed product dimensions:1700X700X900
Gross weight (kg):117.000
Packaging type:Carton on pallet
Paper packaging:5.504 kg
Polystyrene packaging:0.688 kg
Wood packaging:9.450 kg
Plastic packaging:0.070 kg
EQUIPMENTS
Drain pump:Yes
Peristaltic detergent doser:Electronic control
Peristaltic rinse-aid doser:Electronic control
Deafult chemicals dosing unit of measure:gr/lt
Detergent load:1,5 l/h
Rinse load:0,4 l/h
Automatic start:Yes, default OFF
Soft Start system:Yes
Stand-by system:Yes
Thermostop system:Yes
Cycle counter:Yes
Filter:5-stages filter system
Partial renewal of water in the tank and built-in drain pump:Yes
Trays washing option:GN1/1 530X32 5mm
Detergent (red) hose lenght:2,2m
Rinse aid (blue) hose lenght:2,2m
