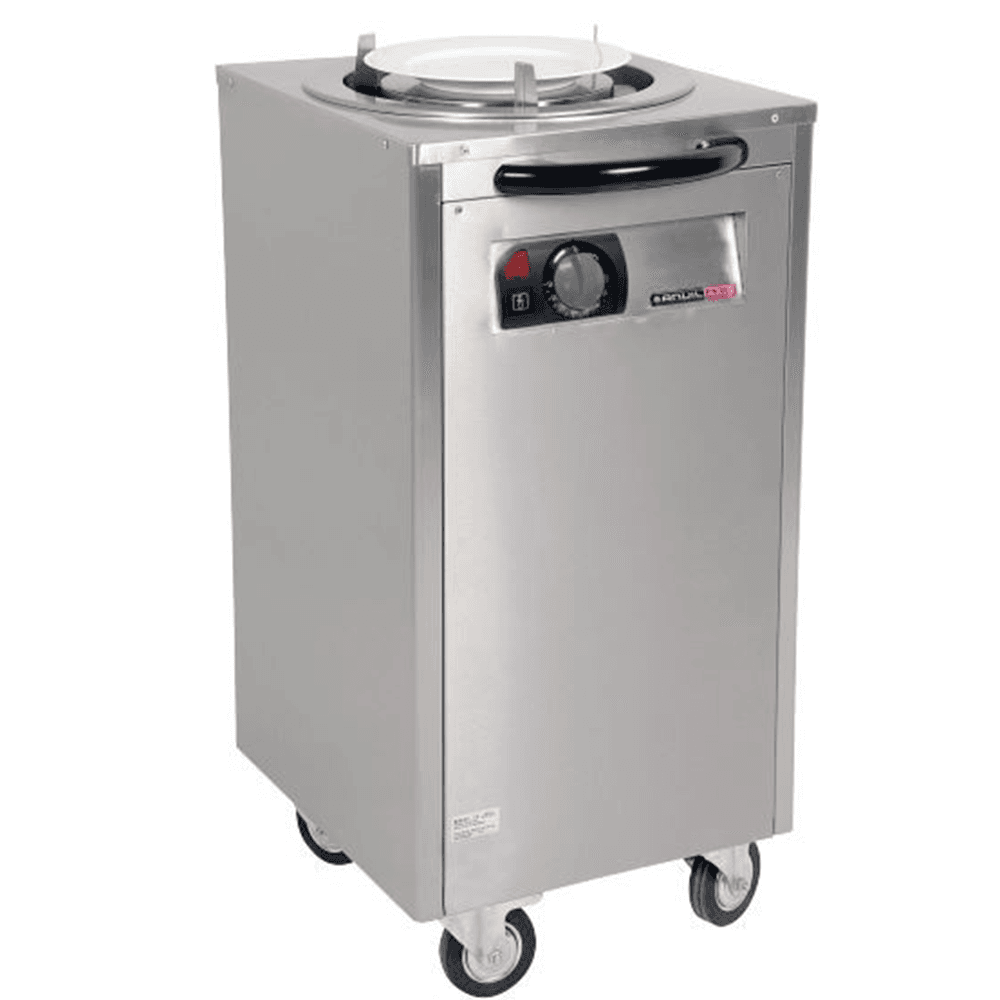

PLATE LOWERATORS

Name: PLATE LOWERATORS
Brand: Anvil

053 861 4301

2-year warranty

Parts & labour

Nationwide

Delivery

In-house

Repairs & spares

Specifications

From catalog

Plate Capacity: Approx 40 (varies with plate thickness)
Power: 0.4kW
Voltage: 230V
Dimensions: 450 x 450 x 847mm - PLK0001
Max Plate Size: 300mm Diameter
Plate Size: 200 - 300mm
Weight: 35kg
Cut Diameter: 385mm
Models: PLK0001 | PLK0002 | PWK1001
Plate Guides: 3 (per compartment)
Req Cabinet Depth: 775mm

Description

FEATURES • Temperature control via thermostat (PLK0001 & PLK0002) • Pre set thermostat on PWK1001 • Double skin Stainless Steel construction reduces heat loss and improves the strength of the unit • Adjustable plate guides • Adjustable spring tension • Easily moved to required position • Countersunk unit is designed for counter top installation VOLTAGE: 230V POWER: 0.4kW DIMENSIONS: 450 x 450 x 847mm - PLK0001 WEIGHT: 35kg PLATE GUIDES: 3 (per compartment) PLATE CAPACITY: Approx 40 (varies with plate thickness) PLATE SIZE: 200 - 300mm MAX PLATE SIZE: 300mm Diameter SPECIFICATIONS - PLK0002 VOLTAGE: 230V POWER: 0.8kW DIMENSIONS: 450 x 970 x 850mm WEIGHT: 68kg PLATE GUIDES: 3 (per compartment) PLATE CAPACITY: Approx 80 (varies with plate thickness) PLATE SIZE: 200 - 300mm MAX PLATE SIZE: 300mm Diameter SPECIFICATIONS - PWK1001 VOLTAGE: 230V POWER: 0.4kW DIMENSIONS: 405 circumference x 728mm WEIGHT: 25kg PLATE GUIDES: 3 (per compartment) PLATE CAPACITY: Approx 40 (varies with plate thickness) PLATE SIZE: 200 - 300mm MAX PLATE SIZE: 300mm Diameter CUT DIAMETER: 385mm REQ CABINET DEPTH: 775mm ORDER CODES: PLK0001 A PLATE LOWERATOR ANVIL - HEATED (MOBILE) PLK0002 B PLATE LOWERATOR ANVIL - HEATED DOUBLE (MOBILE) PWK1001 C PLATE WARMER ANVIL - DROP IN
